Products · 10 Products in 5 Families

Precise Fertigation for Main Pipes from 10 to 100 m³/h

Fertigation units from 15 m³/h inline injectors to 100 m³/h bypass systems, with German EC/pH sensors and up to eleven dosing channels, plus UV drain-water disinfection, substrate weighing, coco growing media and a complete deep water culture greenhouse.

10–100m³/hMain-pipe flow, JET Bypass-III.
11Dosing channels, OXYGRO-Inline.
99.9%Sterilisation rate, ASEPTICER.
OXYGRO-Inline Quantum Flow fertigation unit with the OXYGRO logo, mixing tank, dosing lines and blue pump

3 Products

Fertigation

Inline, bypass and high-flow units that mix and dose fertiliser into irrigation water under EC and pH control.

Fertigation

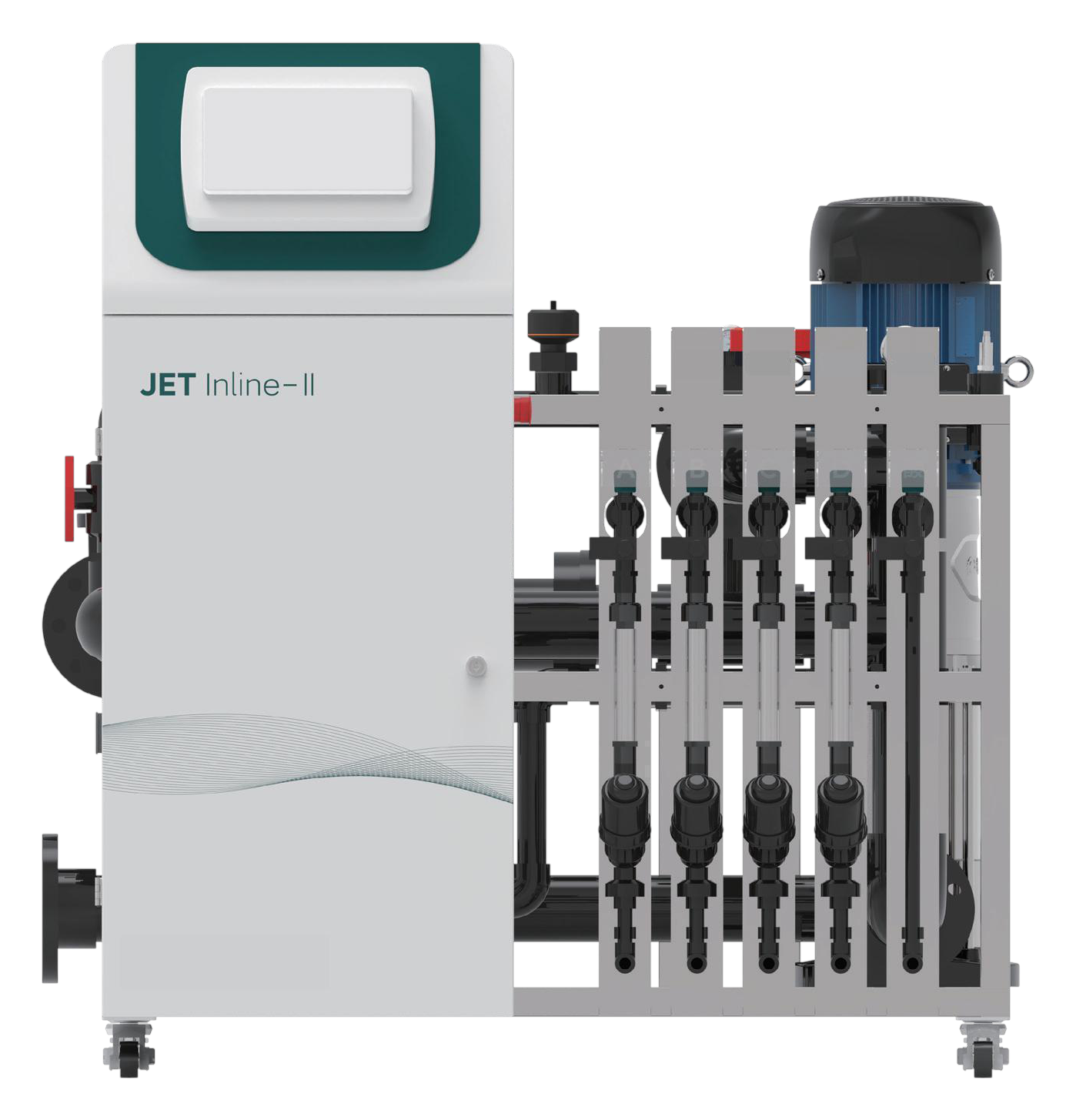

JET Inline-II and JET Inline-III

JET Inline doses fertiliser on the mainline for soilless crops.

Irrigation Flow
15 / 32 m³/h
Fertiliser Channels
5
Inlet / Outlet
DN50 / DN80
Fertigation

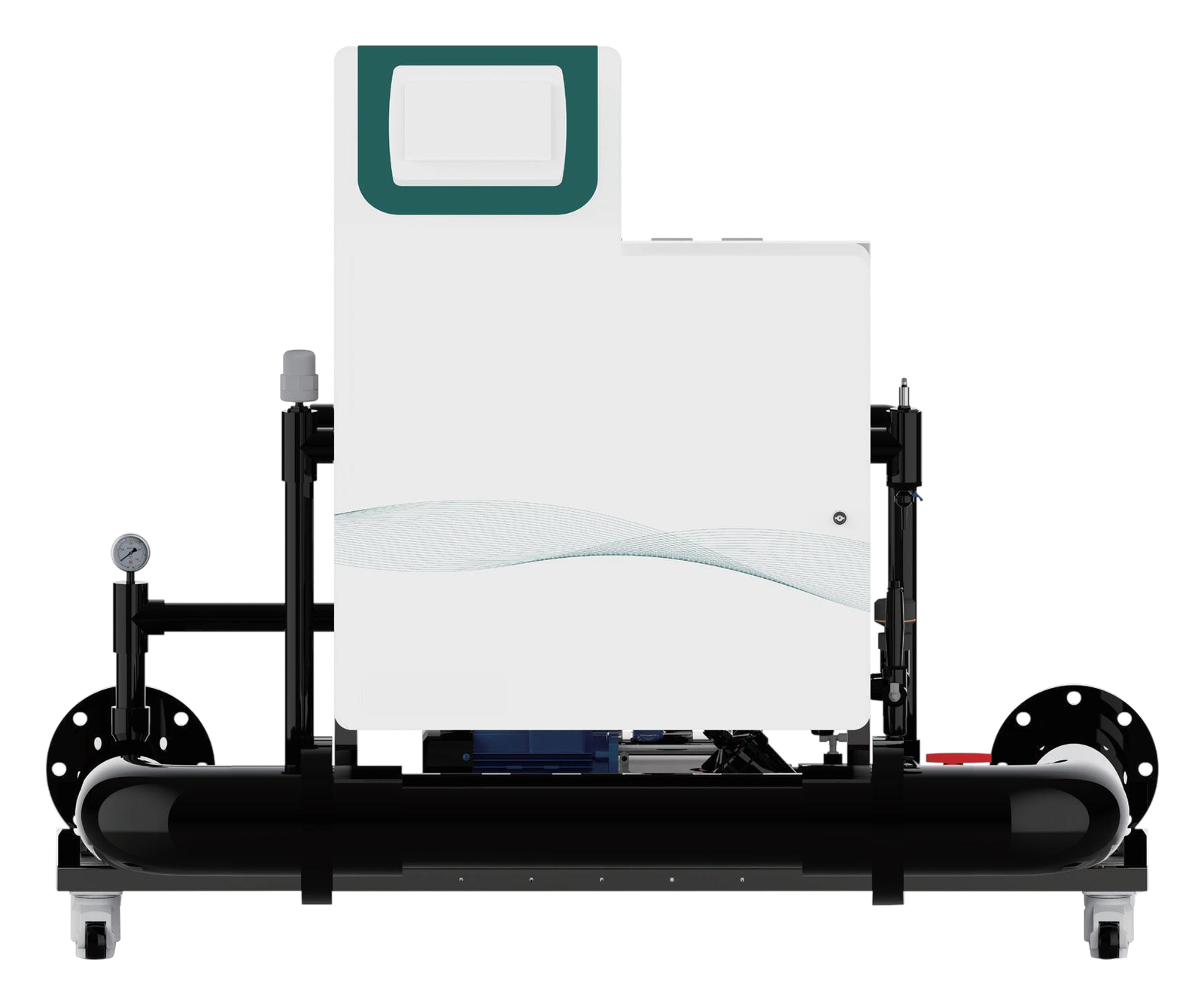

JET Bypass-III

JET Bypass-III fertigates large substrate and soil-grown crops in bypass mode.

Main-Pipe Flow
10–100 m³/h
Main-Pipe Pressure
≤7.0 bar
Irrigation Valves
≤64
Fertigation

OXYGRO-Inline

OXYGRO-Inline delivers high-flow fertigation with a 500 L mixing tank and optional drain-water reuse.

Pump Flow
30–65 m³/h
Dosing Channels
Up to 11
Mixing Tank
500 L

1 Product

Water Treatment

UV disinfection of drain water so it can be reused through the fertigation unit.

Water Treatment

ASEPTICER UV Disinfection Machine

The ASEPTICER disinfects drain water with medium-high-pressure UV so it can be reused.

UV Lamp
1000 W
Lamp Life
18,000 h
Capacity
5–40 m³/h

2 Products

Substrate Monitoring

Weighing scales that track substrate weight, drainage, EC and pH to time irrigation.

Substrate Monitoring

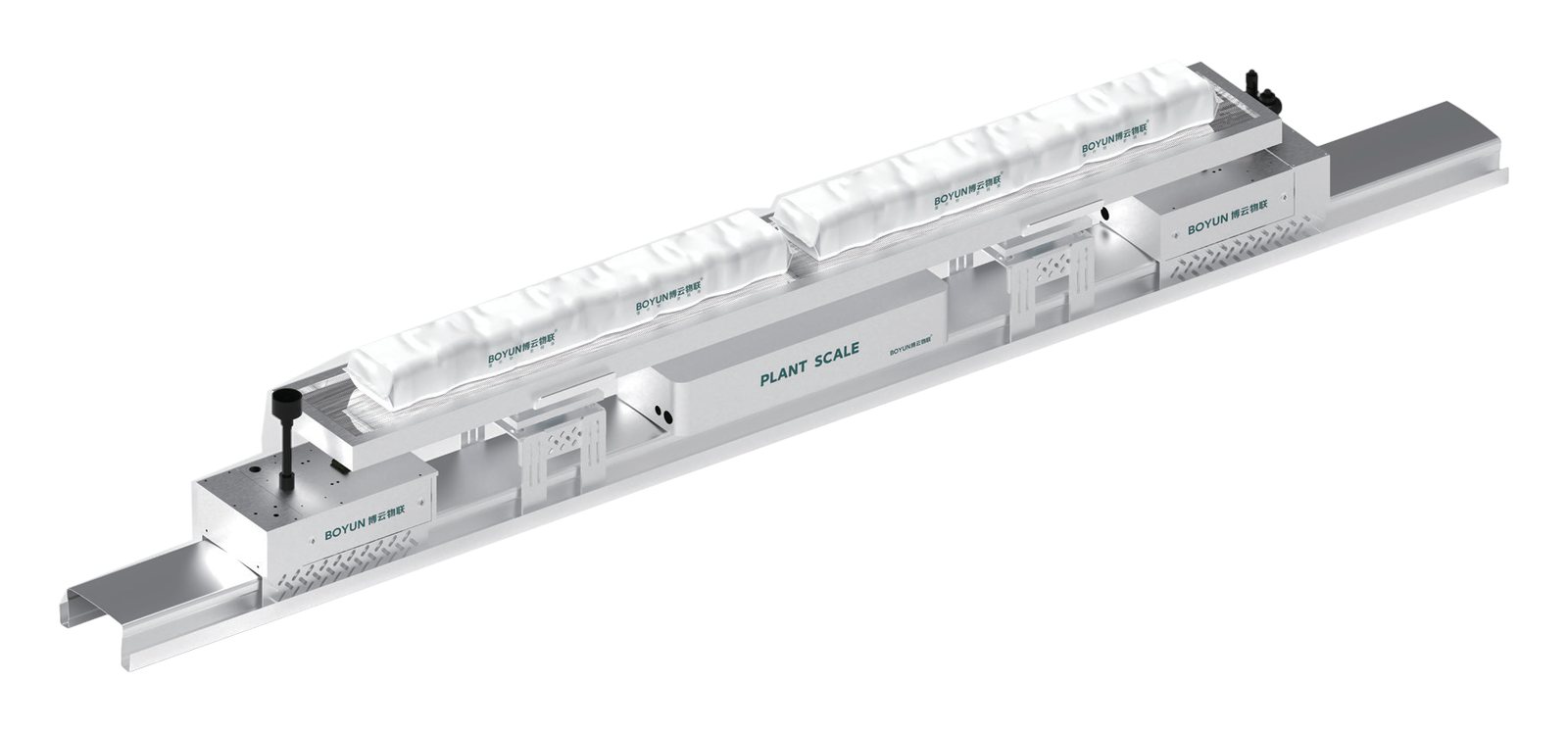

Plant Scale-I and Plant Scale-II

Plant Scale weighs the substrate so irrigation follows measured data.

Tray (I)
2500 × 210 mm
Tray (II)
2040 × 300 mm
Standard Substrate Load
70 kg
Substrate Monitoring

Plant Scale-III

Plant Scale-III weighs and monitors berries grown in single pots and bags.

Range
35 kg
Tray
310 × 310
Parameters
9

3 Products

Growing Media

Washed cocopith and coco chip blends designed for vine crops, strawberries and blueberries.

Growing Media

Tropical Design Mix for Vine Crops

This airy, low-EC coco substrate stays stable through 10–12-month vine crops.

Mix
60% pith / 40% chips
EC
< 0.5 mS/cm
pH
5.8–6.5
Growing Media

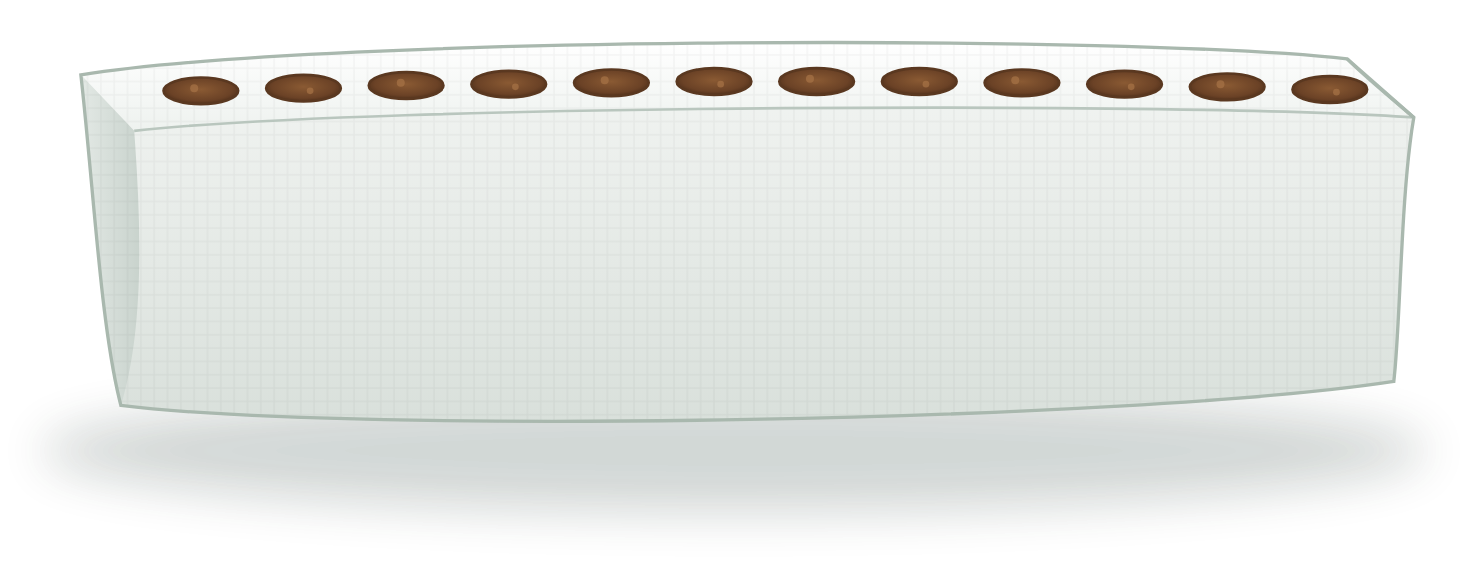

Strawberry Premium Blend

This coco blend drains freely and still holds steady moisture for strawberries.

Mix
90% pith / 10% chips
EC (1:1.5)
< 0.7 mS/cm
pH
5.5–6.5

1 Product

DWC Greenhouse Systems

Complete deep water culture greenhouse design for lettuce, leafy greens and herbs.

DWC Greenhouse Systems

DWC Hydroponic Greenhouse System

Deep water culture delivers continuous harvests of lettuce and leafy greens.

Greenhouse
10 × 39 m
Water Volume
86,400 L
Water Depth
30 cm

Not Sure Which Unit Fits Your Main Pipe?

Send your flow rate, number of valves and crop. We will recommend the model and edition with the matching specification.
