Growing Media

Tropical Design Mix for Vine Crops

Design Mix · 60/40

A 60/40 blend of double-sieved cocopith and coco chips with EC below 0.5 mS/cm and pH 5.8–6.5, supplied as growbags and grow slabs.

Mix
60% pith / 40% chips
EC
< 0.5 mS/cm
pH
5.8–6.5
Growbag (Expanded)
100 × 18 × 15 cm
Download Spec Sheet (PDF)

What It Is

Overview

This airy, low-EC coco substrate stays stable through 10–12-month vine crops.

Vine crops stand in the same substrate for 10 to 12 months, so the medium has to stay open and stable for the whole season. The Tropical Design Mix pairs double-sieved cocopith (0.5–8 mm) for water retention with 8–16 mm coco chips for air. EC stays below 0.5 mS/cm for precise feeding, and the mix re-wets fast.

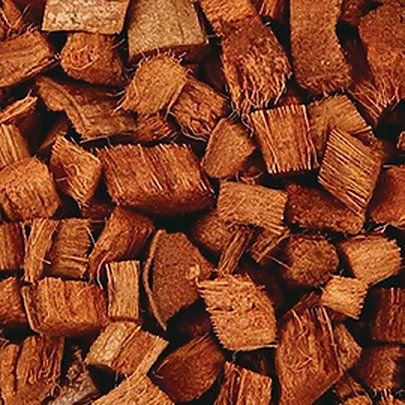

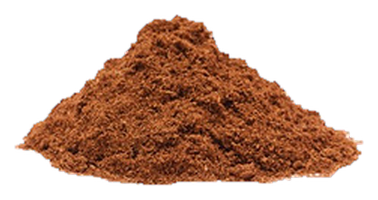

The cocopith is separated from the long husk fibres, washed to remove salts, dried and sieved. The coco chips are cut from whole husk, washed, dried and matured for several months to stabilise before grading. Both are packed in woven fabric bags, as growbags or 5 kg grow slabs.

Who It Is ForGrowers of tomatoes, cherry tomatoes, bell peppers, cucumbers and courgettes on long 10–12-month crop cycles.

Features

  • Its airy, stable structure and ultra-low EC allow precise feeding.
  • It re-wets fast across a 10–12-month crop.
  • Sodium and potassium salts are at trace levels.
  • It is available as a tropical, hot or cold mix.
  • Dripper and drain holes are customised to order.

Specifications

Technical Data

Material Composition

Material Composition
MaterialShareParticle Size
Cocopith (Double-Sieved)60%0.5–8 mm
Coco Chips40%8–16 mm

Physical and Chemical Properties

Physical and Chemical Properties
ParameterValue
Expanded Dimensions (L × W × H)100 × 18 × 15 cm
Weight per Growbag3 kg
Moisture Content< 15%
pH5.8–6.5
Electrical Conductivity (EC)< 0.5 mS/cm
Sodium and Potassium SaltsTrace levels
PackagingWoven fabric bags
FormatsGrowbags (100 × 18 × 15 cm expanded); 5 kg grow slabs (30 × 30 × 12–15 cm)

Drawings

Layouts and Schematics

Tropical design mix: 60% cocopith, 40% coco chips Proportion bar for the tropical design mix for vine crops: 60% double-sieved cocopeat with a particle size of 0.5 to 8 mm for water retention, and 40% husk chips with a particle size of 8 to 16 mm for aeration. Tropical design mix vine crops · growbags and grow slabs 60% 40% Cocopeat, double-sieved water retention particle size 0.5–8 mm Husk chips aeration particle size 8–16 mm Proportions by share of the mix.
Fig. 1Tropical Design Mix: 60% double-sieved cocopith and 40% coco chips.
Growing media formats and dimensions Five growing media formats drawn to one scale. Vine-crop growbag, expanded: 100 by 18 by 15 cm. Strawberry growbag, expanded: 100 by 10 by 10 cm; dry: 98 by 9 by 2.5 cm. Grow slab, 5 kg: 30 by 30 cm and 12 to 15 cm high. Blueberry blend block: 29 by 29 by 33 cm. 100 cm 15 cm 18 cm Vine-crop growbag, expanded 100 cm 10 cm 10 cm Strawberry growbag, expanded 98 cm 2.5 cm 9 cm Strawberry growbag, dry 30 cm 12–15 cm 30 cm Grow slab, 5 kg 29 cm 33 cm 29 cm Blueberry blend block 0 50 cm All formats drawn to one scale. Dashed line on the slab: 12 cm (height 12–15 cm).
Fig. 2Growing media formats and their dimensions.
