OXYGRO-Inline Quantum Flow · Essential · Professional

A high-flow fertigation system for 30 to 65 m³/h, with up to eleven dosing channels, a 500 L mixing tank, dual frequency-conversion pumps and drain-water reuse.

Pump Flow: 30–65 m³/h
Dosing Channels: Up to 11
Mixing Tank: 500 L
Outlet Pressure: 2–6 bar

What It Is

Overview

OXYGRO-Inline delivers high-flow fertigation with a 500 L mixing tank and optional drain-water reuse.

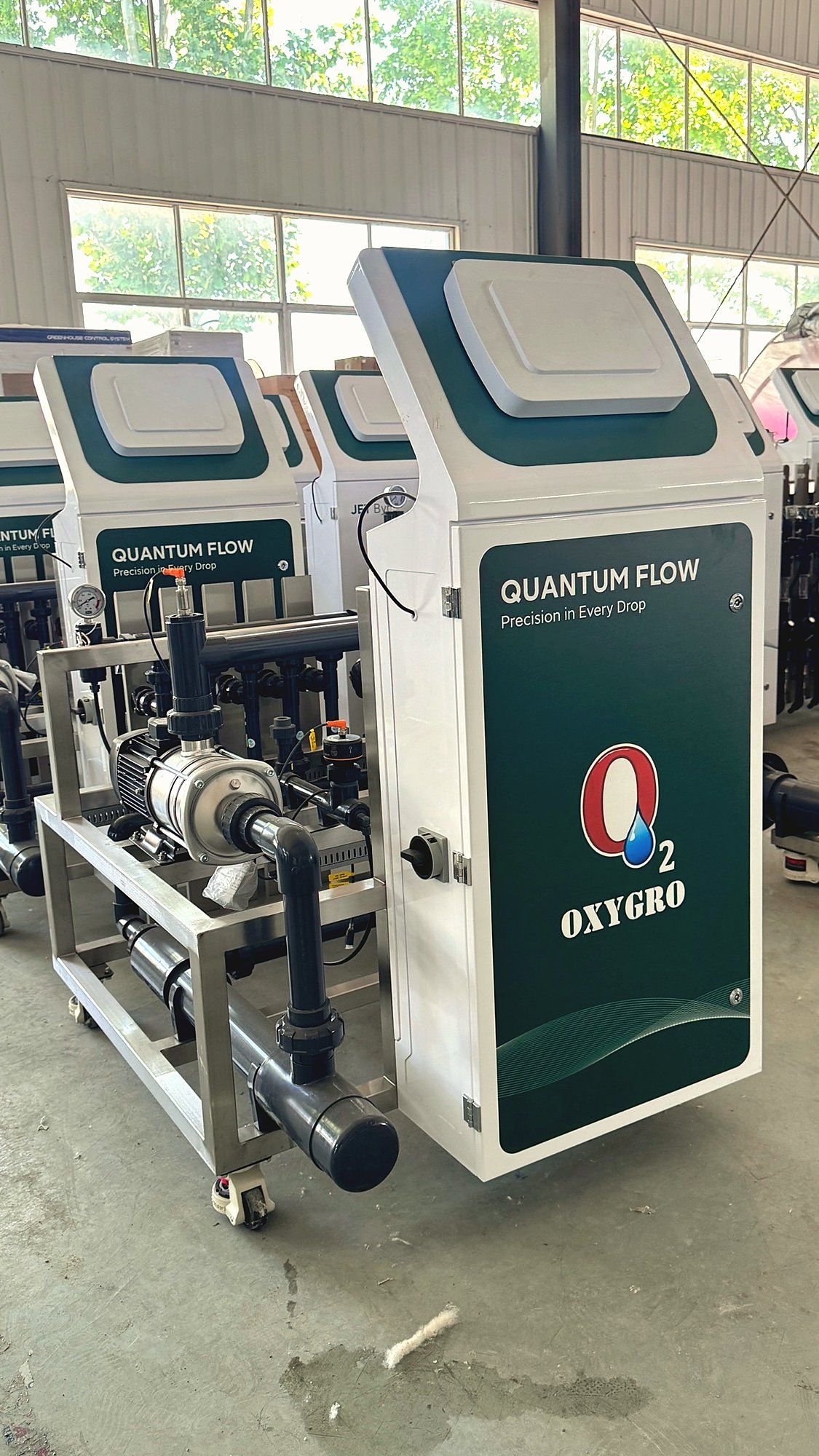

OXYGRO-Inline Quantum Flow is the high-flow fertigation unit in the range. Its two frequency-conversion pumps deliver 30 to 65 m³/h at 2 to 6 bar. Fertiliser is mixed in a 500 L tank before it goes out to the irrigation valves.

In direct-injection mode, a double butterfly valve blends fresh water with disinfected drain water, and an EC sensor checks the blend before dosing. This is how drain water from an ASEPTICER UV unit returns to the crop. In day-tank mode, the unit fills a set of day tanks, and each tank feeds its own zone.

The Essential edition is a stand-alone unit with five channels, up to 10 valves and six time-based programmes. The Professional edition adds eleven channels, up to 666 valves, 20 time- or sensor-based programmes and optional drain recycling, and can run as a substation of a central system.

Who It Is ForLarge greenhouse operations that irrigate at 30 to 65 m³/h, run many valves and want to blend disinfected drain water back into the feed.

Features

The Professional edition's eleven channels give precise fertiliser control.
A custom double butterfly valve lets you reuse drain water.
Dual frequency-conversion pumps deliver large flow rates.
A 500 L mixing tank gives thorough mixing and extra buffer capacity.
High-accuracy EC and pH sensors check the mix.
Operate it from the touch screen, a smartphone or a laptop.

Specifications

Technical Data

OXYGRO-Inline Specifications

OXYGRO-Inline Specifications
Parameter	Essential	Professional
Equipment Type	Stand-alone	Stand-alone / central-system substation
Irrigation Type	Mixing-tank mode	Mixing-tank mode
Irrigation Mode	Direct injection / day tank	Direct injection / day tank
Control	Touch screen + mobile app	Touch screen + laptop + smartphone
Dosing Channels	5 channels, 600 L/h	11 channels, 600 L/h
Irrigation Pump Flow	30–65 m³/h	30–65 m³/h
Outlet Pressure	2–6 bar	2–6 bar
Sensors	Dual EC, pH, flowmeter	Dual EC, pH, flowmeter
Irrigation Valves	≤10	≤666
Irrigation Programmes	Time-based control, 6 programmes	Time- or sensor-based control, 20 programmes
Drain Recycling and Reuse	Not equipped	Optional
Automatic Backwash Filter	Optional	Optional
Water-Supply Pump	Optional	Optional

Drawings

Layouts and Schematics

Fig. 1Day-tank mode: OXYGRO-Inline fills each day tank through its own refill valve, and each tank then has its own pump and irrigation valve.

Fig. 2Direct-injection mode: fresh and disinfected drain water are blended through the double butterfly valve and checked by an EC sensor before dosing.
